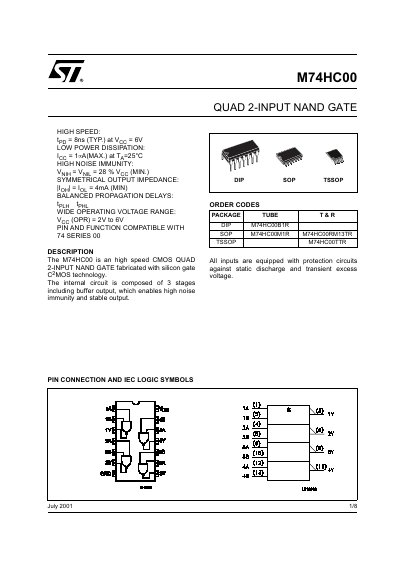

This document describes the features and characteristics of the M74HC00 high-speed CMOS quad 2-input NAND gate, including high-speed propagation delay, low power dissipation, high noise immunity, etc.
The M74HC00 is a high‑speed CMOS quad 2‑input NAND gate fabricated with silicon‑gate C2MOS technology. It offers low power dissipation, high noise immunity, and a wide operating voltage range, making it compatible with the 74 series logic family.
The document lists absolute maximum ratings, recommended operating conditions, pin functions, truth table, mechanical package data, and test circuit information. It also includes detailed electrical characteristics such as input/output voltage levels, propagation delay, and power consumption.
| Operating Voltage Range | 2 V to 6 V |
|---|---|
| Typical Propagation Delay (VCC=6 V) | 8 ns (typ.) |
| Supply Current (ICC) at 25 °C | 1 µA max |
The device operates from 2 V to 6 V.
The typical propagation delay is 8 ns.
The maximum supply current is 1 µA.
Available packages include DIP‑14, SOP, TSSOP, and others.
