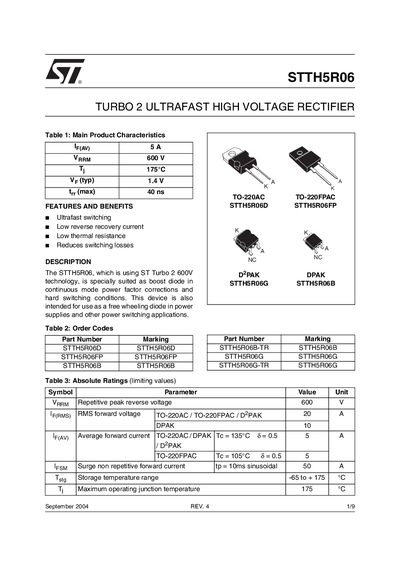

The STTH5R06, which is using ST Turbo 2 600V technology, is specially suited as boost diode in continuous mode power factor corrections and hard switching conditions. This device is also intended for use as a free wheeling diode in power supplies and other power switching applications.
The STTH5R06 Turbo 2 Ultrafast High Voltage Rectifier is a high‑speed, low‑loss diode intended for boost diode applications in power factor correction, hard‑switching conditions, and as a free‑wheeling diode in power supplies. It offers ultrafast switching, low reverse recovery current and low thermal resistance.
The document lists absolute ratings, thermal resistance values, static and dynamic electrical characteristics, mechanical dimensions for TO‑220, DPAK, D2PAK and TO‑220FPAC packages, ordering information and revision history. Key parameters include a 600 V repetitive peak reverse voltage, 5 A average forward current and a typical forward voltage of 1.4 V.
| Repetitive peak reverse voltage (VRRM) | 600 V |
|---|---|
| Average forward current (IF(AV)) | 5 A |
| Typical forward voltage (VF typ) | 1.4 V |
| Maximum reverse recovery time (trr) | 40 ns |
| Reverse leakage current (IR) at 25 °C | 20 µA |
The device is rated for a repetitive peak reverse voltage of 600 V.
The recommended torque for the TO‑220FPAC package is 0.8 m.N.
