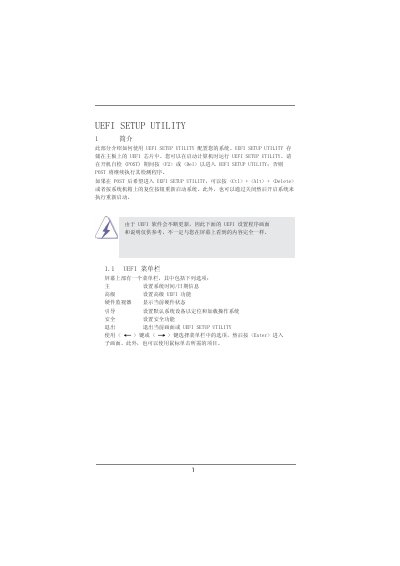

ASRock UEFI Setup Utility User Manual

About this manual

This manual explains how to access and navigate the UEFI Setup Utility stored in the motherboard's UEFI chip. It covers entering the utility, using the menu bar, navigation keys, and the various configuration screens.

The document details settings for CPU, memory, chipset, power, and security, as well as hardware health monitoring, boot options, and how to save or discard changes. It also includes information on ASRock Instant Flash for updating the UEFI firmware. This manual is written in Chinese.

What's inside

• Introduction
• UEFI Menu Bar
• Navigation Keys
• Main Screen
• Advanced Screen
• CPU Configuration
• DRAM Configuration
• Northbridge & Southbridge Configuration
• Hardware Health Monitoring
• Boot and Security Settings

Specifications

Frequently asked questions

How do I enter the UEFI Setup Utility?

Press or during the Power‑On Self‑Test (POST) to open the UEFI Setup Utility.

Which key loads the optimal default settings?

Press the F9 key to load all settings to their optimal default values.

How can I save changes and exit the utility?

Press to save the changes and exit the UEFI Setup Utility.

How do I exit without saving changes?

Press to go to the Exit screen and choose to discard changes.
