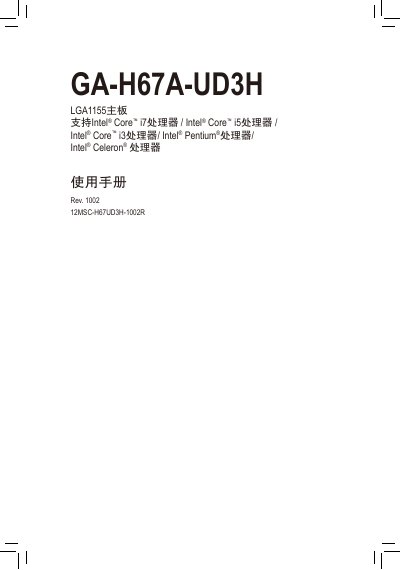

The GA-H67A-UD3H LGA1155 motherboard is a product released by Gigabyte Technology Co., Ltd. in 2010. It supports Intel® Core™ i7 processors / Intel® Core™ i5 processors / Intel® Core™ i3 processors / Intel® Pentium® processors / Intel® Celeron® processors. The motherboard has a wide range of features and characteristics, including dual-channel memory technology, easy installation of the central processing unit and cooling fan, and expansion card slots.
This manual guides users through hardware installation, including CPU, memory, and expansion cards, and explains BIOS settings, power management, and built‑in peripheral configuration. It also covers driver installation, unique features such as Xpress Recovery and Dynamic Energy Saver, and provides troubleshooting and service information.
Detailed product specifications are listed, covering supported processors, memory architecture, audio and network chips, and expansion slot capabilities. Contact information for global technical support and service centers is provided at the end of the document. This manual is written in Chinese.
| CPU Socket | LGA1155 |
|---|---|
| Supported CPUs | Intel Core i7/i5/i3, Pentium, Celeron |
| Memory Slots | 4 DDR3 DIMM slots, up to 16 GB |
| Supported Memory Speed | DDR3 1333/1066/800 MHz |
| Audio Codec | Realtek ALC892 |
| Network Controller | Realtek RTL8111E (10/100/1000 Mbit) |
| Primary Expansion Slot | 1 PCI Express x16 (supports x16) |
| Additional PCIe Slots | 2 PCI Express x1 slots (PCIe 2.0) |
| Legacy PCI Slots | 3 PCI slots |
| Multi‑GPU Support | ATI CrossFireX™ |
It supports Intel Core i7, i5, i3, Pentium and Celeron processors that use the LGA1155 socket.
The motherboard provides four DDR3 DIMM slots with a maximum supported memory of 16 GB.
The board uses a Realtek ALC892 audio codec.
It includes a Realtek RTL8111E controller providing 10/100/1000 Mbit Ethernet.
