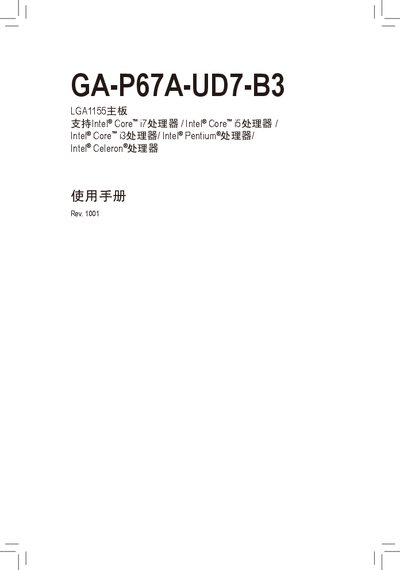

GA-P67A-UD7-B3 LGA1155 motherboard user manual, introduces the hardware installation and BIOS program settings of the motherboard.
This manual guides users through hardware installation, BIOS setup, driver installation, and the unique features of the GA-P67A-UD7-B3 ATX motherboard. It includes safety precautions, component identification, and detailed instructions for CPU, memory, storage, and expansion card installation.
The document also lists the technical specifications such as supported processors, memory configurations, audio and network controllers, PCIe and SATA interfaces, and provides troubleshooting information and contact details for Gigabyte technical support. This manual is written in Chinese.
| CPU Socket | LGA1155 |
|---|---|
| Supported Processors | Intel® Core i7/i5/i3, Pentium, Celeron |
| Chipset | Intel® P67 |
| Memory Slots | 4 x DDR3 DIMM, up to 16 GB |
| Memory Speed | DDR3 2133/1866/1600/1333/1066 MHz |
| Audio Codec | Realtek ALC889 |
| Network Controllers | 2 x Realtek RTL8111E (10/100/1000 Mbit) |
| PCI Express Slots | 2 x PCIe x16 (x16), 2 x PCIe x8, 1 x PCIe x1 |
| Form Factor | ATX (30.5 cm × 24.4 cm) |
It supports LGA1155 processors, including Intel® Core i7, i5, i3, Pentium, and Celeron CPUs.
For best performance, install the primary graphics card in the PCIEX16_1 slot.
