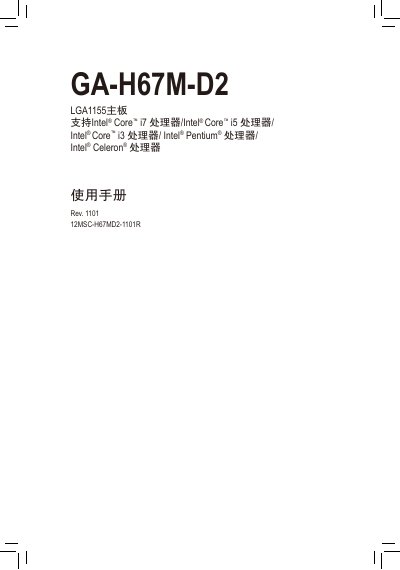

The GA-H67M-D2 LGA1155 motherboard supports Intel® Core™ i7 processors/Intel® Core™ i5 processors/Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® processors. This manual provides information on the installation of the motherboard and BIOS program settings.
This manual covers everything needed to install and configure the Gigabyte GA-H67M-D2 motherboard, including hardware installation, BIOS settings, driver installation, and unique features such as Xpress Recovery and Cloud OC. Detailed diagrams of the board layout and functional block are provided, along with a full list of accessories and part numbers.
The document also contains product specifications, safety precautions, and an extensive appendix with service contacts, warranty information, and links to Gigabyte’s support websites for further assistance. This manual is written in Chinese.
| CPU socket | LGA1155, supports Intel Core i7/i5/i3, Pentium, Celeron |
|---|---|
| Memory slots | 2 DDR3 DIMM slots, up to 16 GB |
| Supported memory speed | DDR3 1333/1066/800 MHz |
| Audio codec | Realtek ALC888B/889 |
| Network controller | Realtek RTL81 11E (10/100/1000 Mbit) |
| PCI Express slots | 1 × PCIe x16 (up to x16), 1 × PCIe x16 (up to x4), 2 × PCIe x1 |
| SATA ports | 2 × SATA 6Gb/s, 4 × SATA 3Gb/s (RAID 0/1/5/10) |
It supports Intel Core i7, i5, i3, Pentium and Celeron processors that use the LGA1155 socket.
The board has two DDR3 DIMM slots that together can hold up to 16 GB of memory.
The BIOS can be updated using the Q‑Flash utility or the @BIOS online update method described in Chapter 4.
Technical support contacts and regional websites are listed in the appendix, including phone numbers and URLs for global service centers.
