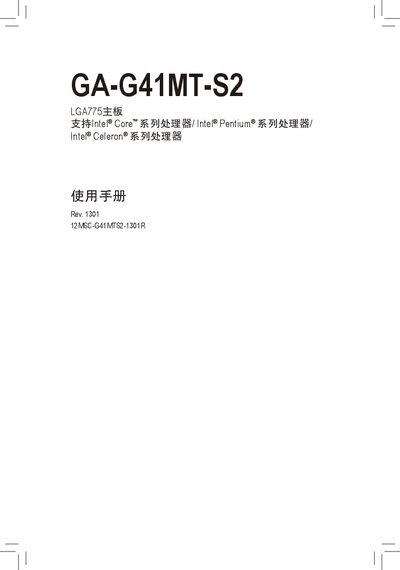

GA-G41MT-S2 is a LGA775 motherboard that supports Intel Core series processors/Intel Pentium series processors/Intel Celeron series processors. The motherboard has rich hardware configuration and BIOS settings options.
This manual covers hardware installation steps, including CPU, memory, and expansion card installation, as well as safety precautions and anti‑static handling. It also details BIOS configuration, driver installation, and troubleshooting guidance.
Additional sections describe the rear panel connectors, integrated components such as audio and LAN, and provide full technical specifications of the board, including form factor, power connectors, and supported peripherals. This manual is written in Chinese.
| CPU socket | LGA775 |
|---|---|
| Supported CPUs | Intel Core2 Extreme, Core2 Quad, Core2 Duo, Pentium, Celeron |
| Memory slots | 2 DDR3 DIMM slots, up to 4 GB, DDR3 1066/800 MHz, dual‑channel |
| Audio codec | VIAVT1708S chip, High Definition Audio |
| LAN controller | Atheros AR8151 10/100/1000 Mb |
| Expansion slots | 1 × PCI‑Express x16, 2 × PCI‑Express x1, 1 × PCI |
| SATA ports | 4 × SATA 3 Gb/s |
| Power connectors | 24‑pin ATX main, 4‑pin ATX12V |
| Form factor | MicroATX 24.4 cm × 19.4 cm |
It has two DDR3 DIMM slots that support up to 4 GB of memory.
The board uses an LGA775 socket for Intel processors.
An Atheros AR8151 controller providing 10/100/1000 Mb Ethernet is built in.
