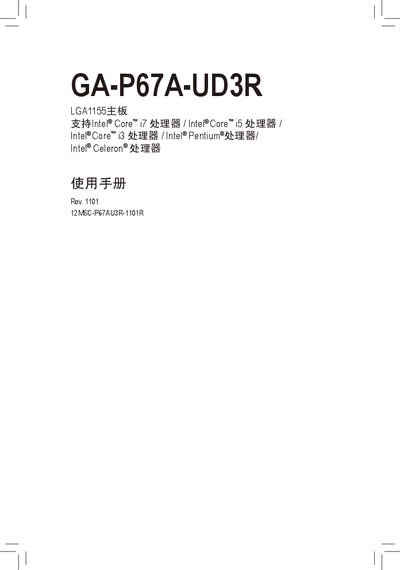

GA-P67A-UD3R LGA1155 motherboard user manual, introduces the hardware installation and BIOS program settings of the motherboard
This manual explains how to install and configure the Gigabyte GA-P67A-UD3R LGA1155 motherboard. It covers safety precautions, CPU and memory installation, expansion card mounting, and connector descriptions.
Later sections detail BIOS setup options, driver installation, unique Gigabyte features such as Xpress Recovery and EasyTune, and an appendix with SATA configuration, audio settings, and warranty information. This manual is written in Chinese.
| CPU Socket | LGA1155 |
|---|---|
| Supported CPUs | Intel Core i7/i5/i3, Pentium, Celeron |
| Chipset | Intel P67 |
| Memory Slots | 4 DDR3 DIMM slots |
| Maximum Memory | 16 GB |
| Memory Speed | DDR3 2133/1866/1600/1333/1066 MHz |
| Audio Codec | Realtek ALC892 |
| Network Controller | Realtek RTL8111E |
| SATA Ports | 2 × 6 Gb/s, 4 × 3 Gb/s |
| USB Ports | 14 × USB 2.0/1.1, 2 × USB 3.0/2.0 |
It provides four DDR3 DIMM slots for up to 16 GB of memory.
The board uses an LGA1155 socket for compatible Intel processors.
The motherboard supports up to 14 USB 2.0/1.1 ports and 2 USB 3.0/2.0 ports.
