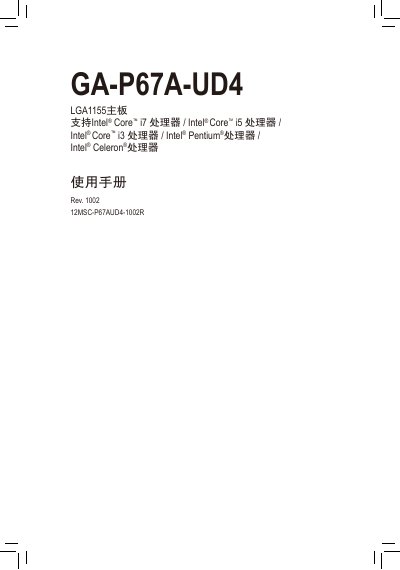

This document is the user manual for the GA-P67A-UD4 LGA1155 motherboard. It provides information on the supported processor types, configuration diagram, hardware installation, and BIOS program settings.
This manual provides step‑by‑step hardware installation instructions for the Gigabyte GA‑P67A‑UD4 motherboard, including CPU, memory, and expansion‑card installation, as well as safety precautions. It also covers BIOS configuration, driver installation, and detailed product specifications.
Additional sections describe unique features such as CrossFireX/SLI support, Xpress Recovery, and troubleshooting tips, followed by appendices with service contacts and warranty information. This manual is written in Chinese.
| CPU socket | LGA1155 |
|---|---|
| Supported CPUs | Intel Core i7/i5/i3, Pentium, Celeron |
| Memory slots | 4 DDR3 DIMM slots, up to 16 GB |
| Memory speed | DDR3 2133/1866/1600/1333/1066 MHz |
| Audio codec | Realtek ALC892 |
| Network controller | Realtek RTL8111E (10/100/1000 Mbit) |
It uses an LGA1155 socket for compatible Intel processors.
The board provides four DDR3 DIMM slots, supporting up to 16 GB of memory.
A Realtek ALC892 audio codec is built in.
The motherboard includes a Realtek RTL8111E Gigabit Ethernet controller.
