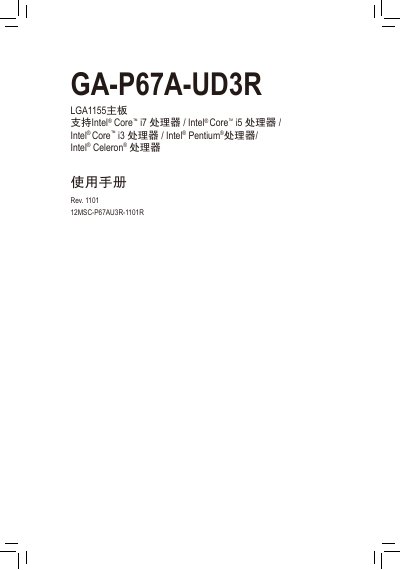

GA-P67A-UD3R LGA1155 motherboard supports Intel® Core™ i7 / Intel® Core™ i5 / Intel® Core™ i3 / Intel® Pentium® / Intel® Celeron® processors. The manual introduces the hardware installation and BIOS program settings of the motherboard.
This manual covers everything needed to install and configure the GA-P67A-UD3R LGA1155 motherboard. It includes hardware installation procedures, CPU and memory installation, connector descriptions, and detailed BIOS setup options.
Additional sections describe driver installation, unique Gigabyte features such as Q-Flash BIOS update, EasyTune, and warranty information. The appendix provides contact details for global technical support. This manual is written in Chinese.
| CPU Socket | LGA1155, supports Intel Core i7/i5/i3, Pentium, Celeron |
|---|---|
| Memory Slots | 4 DDR3 DIMM slots, up to 16 GB, DDR3 2133/1866/1600/1333/1066 MHz |
| Audio | Realtek ALC892/889, supports HD Audio, 2/4/5.1/7.1 channels, Dolby Home Theater |
| Network | Realtek RTL8111E 10/100/1000 Mbit Ethernet |
It has four DDR3 DIMM slots that support up to 16 GB of memory.
The board uses an LGA1155 socket compatible with Intel Core i7, i5, i3, Pentium and Celeron processors.
BIOS updates can be performed using the Q‑Flash utility or the @BIOS online update feature described in the Unique Features section.
Warranty details are provided in the Appendix, starting on page 101, with the quality guarantee card.
