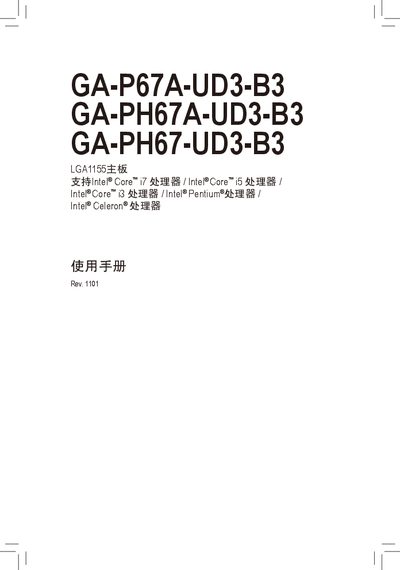

This document describes the features and characteristics of the GA-P67A-UD3-B3, GA-PH67A-UD3-B3, and GA-PH67-UD3-B3 motherboards, as well as the installation and BIOS settings.
This manual provides step‑by‑step instructions for installing the GA‑P67A‑UD3‑B3 (and related GA‑PH67 series) motherboard, including CPU, memory, cooling and expansion cards. It also details the layout of connectors, jumpers and the supported hardware features.
Additional sections cover BIOS configuration, driver installation, unique features such as Dynamic Energy Saver, and a troubleshooting guide. Contact information for Gigabyte technical support worldwide is included at the end of the document. This manual is written in Chinese.
| CPU Socket | LGA1155 |
|---|---|
| Audio Codec | Realtek ALC887 (or similar) |
It uses an LGA1155 socket for Intel Core i7, i5, i3, Pentium and Celeron processors.
The board provides one PCI Express x16 slot.
