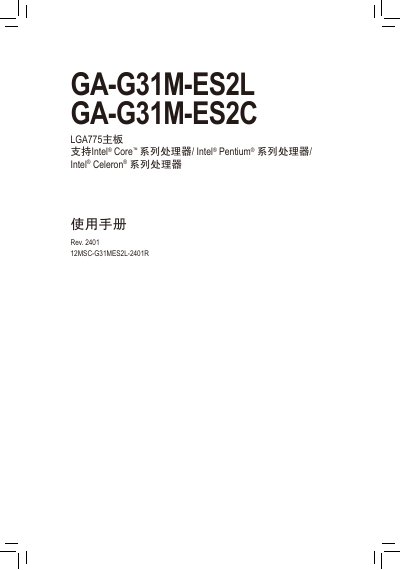

GA-G31M-ES2L/GA-G31M-ES2C motherboard user manual, introduces the motherboard hardware installation and BIOS program setting
This manual covers the complete hardware installation process for the GA‑G31M‑ES2L and GA‑G31M‑ES2C motherboards, including CPU, memory, expansion cards, and front‑panel connectors. It also details safety precautions, static‑discharge protection, and the required tools for a successful build.
The document includes a BIOS setup guide with descriptions of standard and advanced features, power‑management options, and integrated peripheral configuration. Additional sections provide driver installation instructions, a list of supplied accessories, and an appendix with regulatory and service‑contact information. This manual is written in Chinese.
| CPU Socket | LGA775 |
|---|---|
| Chipset (Northbridge) | Intel G31 |
| Chipset (Southbridge) | Intel ICH7 |
| Memory Slots | 2 DDR2 DIMM slots, up to 4 GB total |
| Memory Type | DDR2 800/667 MHz, dual‑channel |
| PCI Express Slots | 1 × PCIe x16, 1 × PCIe x1, 2 × PCI |
| USB Ports | 8 × USB 2.0/1.1 (4 rear, 4 via internal headers) |
| Form Factor | Micro ATX (24.4 cm × 19.4 cm) |
It uses an LGA775 socket for compatible Intel Core, Pentium, and Celeron processors.
The board provides two 1.8 V DDR2 DIMM slots, supporting up to 4 GB of RAM.
The northbridge is Intel G31 and the southbridge is Intel ICH7.
