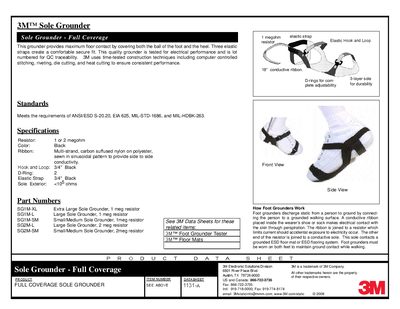

This document describes the features and performance of the 3M™ Sole Grounder Full Coverage. The grounder meets multiple standard requirements, is made with high-quality materials, and provides a comfortable and secure fit. It is tested for electrical performance and is available in various models, including different sizes and resistor values.
The 3M Full Coverage Sole Grounder is an elastic strap‑type foot grounder that covers both the ball of the foot and the heel, ensuring maximum floor contact. It uses a multi‑strand conductive ribbon stitched in a sinusoidal pattern and is built with computer‑controlled stitching, riveting, die‑cutting, and heat‑cutting for consistent performance.
The grounder offers 1 MΩ or 2 MΩ resistance, complies with ANSI/ESD S‑20.20, EIA 625, MIL‑STD‑1686, and MIL‑HDBK‑263, and is available in several sizes (SG1M‑XL, SG1M‑L, SG2M‑SM). It includes D‑rings, hook‑and‑loop fasteners, and a conductive ribbon that connects the wearer to a grounded ESD floor mat.
| Resistor | 1 or 2 megohm |
|---|---|
| Color | Black |
| Ribbon material | Multi‑strand, carbon suffused nylon on polyester |
| Hook and Loop size | 3/4" Black |
| D‑Ring count | 2 |
| Elastic strap size | 3/4" Black |
| Sole exterior resistance | <10 Ω |
The Sole Grounder is offered with either a 1 MΩ or a 2 MΩ resistor.
It meets ANSI/ESD S‑20.20, EIA 625, MIL‑STD‑1686, and MIL‑HDBK‑263.
