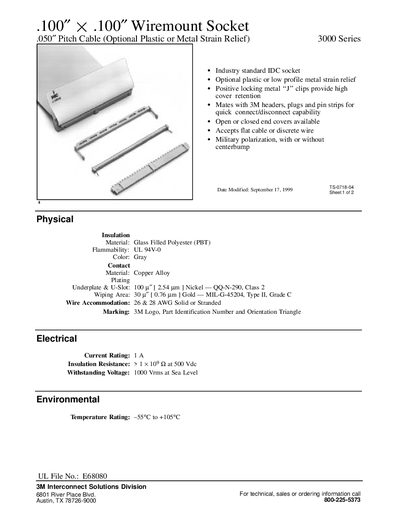

3000 Series 4 - Industry standard IDC socket - Optional plastic or low profile metal strain relief - Positive locking metal ``J'' clips provide high cover retention - Mates with 3M headers, plugs and pin strips for quick connect/disconnect capability - Open or closed end covers available - Accepts flat cable or discrete wire - Military polarization, with or without centerbump
The 3M 3000 Series Wiremount Socket is a .100" × .100" IDC connector offering both open and closed end covers, optional plastic or low‑profile metal strain relief, and military‑grade polarization. It mates with 3M headers, plugs, and pin strips for quick connect/disconnect capability.
The socket provides a current rating of 1 A, insulation resistance greater than 1 × 10⁹ Ω at 500 Vdc, and can withstand 1000 Vrms at sea level. It is rated for temperatures from –55 °C to +105 °C and meets UL 94V‑0 flammability standards.
| Insulation Material | Glass Filled Polyester (PBT) |
|---|---|
| Flammability | UL 94V‑0 |
| Color | Gray |
| Contact Material | Copper Alloy |
| Plating (Nickel) | QQ‑N‑290, Class 2 |
| Plating (Gold) | MIL‑G‑45204, Type II, Grade C |
| Current Rating | 1 A |
| Withstanding Voltage | 1000 Vrms at sea level |
| Temperature Rating | –55 °C to +105 °C |
The socket is rated for a maximum current of 1 A.
It can operate from –55 °C up to +105 °C.
