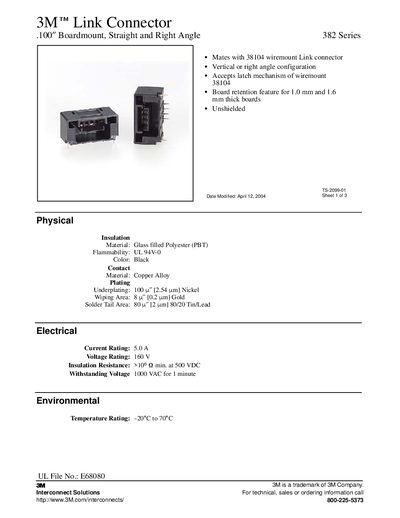

3M Link Connector .100" Boardmount, Straight and Right Angle 382 Series is a connector that mates with 38104 wiremount Link connector. It has a vertical or right angle configuration and accepts the latch mechanism of wiremount 38104. It also has a board retention feature for 1.0 mm and 1.6 mm thick boards.
The 3M 382 Series Link Connector is a board‑mount connector available in straight and right‑angle configurations. It mates with the 38104 wire‑mount connector and includes a board retention feature for 1.0 mm and 1.6 mm thick boards.
Key specifications include a 5.0 A current rating, 160 V voltage rating, insulation resistance greater than 10 MΩ at 500 VDC, and operation from –20 °C to 70 °C. The connector is made of glass‑filled polyester (PBT) with UL 94V‑0 flammability, and its contacts are copper alloy plated with nickel, gold, and tin/lead.
| Insulation Resistance | >10 MΩ at 500 VDC |
|---|---|
| Withstanding Voltage | 1000 VAC for 1 minute |
The insulation resistance is greater than 10 MΩ at a minimum of 500 VDC.
