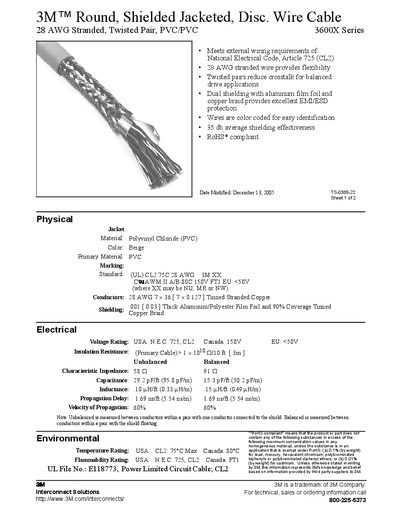

3M™ Round, Shielded Jacketed, Disc. Wire Cable 28 AWG Stranded, Twisted Pair, PVC/PVC 3600X Series is a 28AWG stranded, twisted pair, PVC/PVC material cable.
The 3M 3600X Series cable is a 28 AWG stranded, twisted‑pair wire with PVC jackets, designed for balanced drive applications and meeting NEC Article 725 (CL2) requirements. It features dual shielding with aluminum film foil and copper braid for EMI/ESD protection and is RoHS compliant.
Key specifications include a characteristic impedance of 58 Ω (unbalanced) and 91 Ω (balanced), a capacitance of 29.2 pF/ft, inductance of 0.10 H/ft, and a propagation delay of 1.69 ns/ft. The cable is rated for 75 °C (USA) and 80 °C (Canada) with UL CL2 flammability rating and is available in beige, black, or gray jackets.
| AWG | 28 AWG |
|---|---|
| Conductor configuration | 7 × 36 (7 × 0.127 mm) tinned stranded copper |
| Voltage rating | USA N.E.C. 725 CL2, Canada 150 V, EU < 50 V |
| Characteristic impedance | Unbalanced 58 Ω, Balanced 91 Ω |
| Capacitance (unbalanced) | 29.2 pF/ft (95.8 pF/m) |
| Inductance (unbalanced) | 0.10 H/ft (0.33 µH/m) |
| Propagation delay | 1.69 ns/ft (5.54 ns/m) |
| Temperature rating | USA CL2 75 °C max, Canada 80 °C |
| RoHS compliance | Compliant |
It is rated for USA N.E.C. 725 CL2, Canada 150 V, and EU less than 50 V.
Yes, the cable is RoHS compliant.
The unbalanced impedance is 58 Ω and the balanced impedance is 91 Ω.
