3M™ Shielded Compact Ribbon (SCR) Connectors Wiremount Plug 361 Series is a connector produced by 3M Company. It features 360° shielding which can effectively prevent EMI interference. It can also be quickly assembled by soldering terminals without the need for dedicated tools.

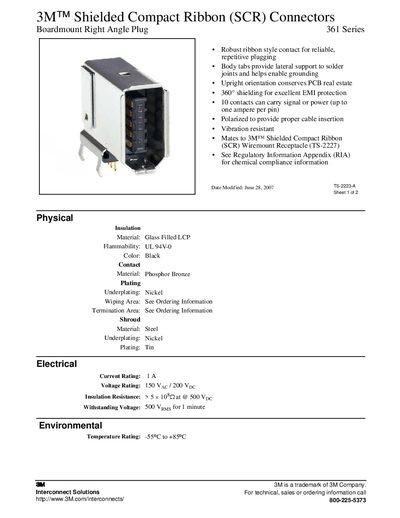

The 3M 361 Series Shielded Compact Ribbon (SCR) connectors are board‑mount right‑angle plugs designed for reliable, repetitive plugging. They feature 10 contacts, 360° shielding, and an upright orientation that saves PCB space. The connectors are polarized for proper cable insertion and are vibration‑resistant.
Key specifications include a 1 A current rating per pin, 150 Vac/200 Vpe voltage rating, -55 °C to +85 °C operating temperature range, and materials such as glass‑filled LCP for insulation and phosphor bronze contacts with nickel plating. Regulatory compliance information for RoHS and China RoHS is provided in the appendix.
| Number of contacts | 10 |
|---|---|
| Insulation resistance | >5 × 10⁸ Ω @ 500 V |
| Temperature rating | -55 °C to +85 °C |
| Flammability rating | UL 94V‑0 |
The connector is rated for -55 °C to +85 °C.
It has 10 contacts that can carry signal or power.
Yes, the product is RoHS compliant according to the EU RoHS appendix.
