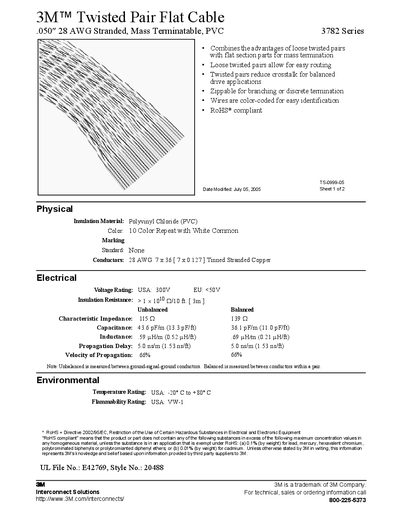

3M™ Twisted Pair Flat Cable .050″ 28 AWG Stranded, Mass Terminatable, PVC 3782 Series is a flat cable product produced by 3M company.
The 3M 3782 Series Twisted Pair Flat Cable is a .050" 28 AWG stranded, mass‑terminatable PVC cable that combines the advantages of loose twisted pairs with a flat section for easy routing and termination. The cable is color‑coded for identification and is RoHS compliant.
The document lists physical, electrical, and environmental specifications, part numbers for various conductor counts, and ordering information such as standard roll length (100 ft). Warranty and liability statements are also included.
| Insulation Material | Polyvinyl Chloride (PVC) |
|---|---|
| Conductors | 28 AWG 7 × 36 (7 × 0.127 mm) tinned stranded copper |
| Voltage Rating | USA: 300 V, EU: <50 V |
| Characteristic Impedance | 115 Ω (unbalanced), 139 Ω (balanced) |
| Temperature Rating | -20 °C to +80 °C (USA) |
| Flammability Rating | VW‑1 (USA) |
| RoHS Compliance | Compliant |
| Standard Length | 100 ft per roll |
| Color Repeat | 10‑color repeat |
The cable is rated for 300 V in the USA and less than 50 V in the EU.
Yes, the cable is RoHS compliant.
Standard rolls are 100 feet long.
The cable uses a 10‑color repeat pattern.
