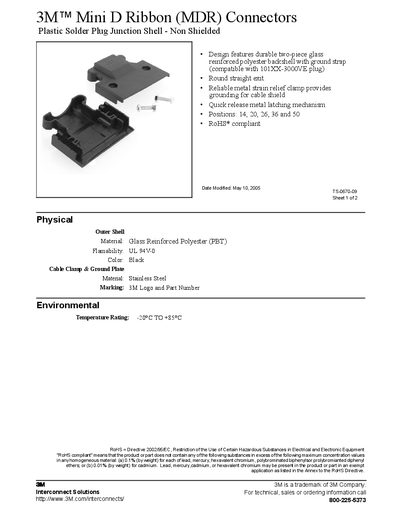

This document describes the features and characteristics of the 3M™ Mini D Ribbon (MDR) Connectors Plastic Solder Plug Junction Shell - Non Shielded, including the material, flammability rating, temperature range, and design features.
The Mini D Ribbon (MDR) Connectors are non‑shielded plastic solder plug junction shells designed for reliable interconnect solutions. They feature a durable two‑piece glass‑reinforced polyester backshell with a ground strap, a metal strain‑relief clamp, and a quick‑release metal latching mechanism.
Key specifications include outer shell material (glass reinforced polyester PBT), flame rating UL 94V‑0, black color, stainless‑steel cable clamp and ground plate, temperature rating –20 °C to +85 °C, and available positions of 14, 20, 26, 36 and 50. The product is RoHS compliant and ordering information such as part number 103XX‑52F0‑008 is provided.
| Outer Shell Material | Glass Reinforced Polyester (PBT) |
|---|---|
| Flamability Rating | UL 94V-0 |
| Color | Black |
| Cable Clamp & Ground Plate Material | Stainless Steel |
| Temperature Rating | -20°C to +85°C |
| Available Positions | 14, 20, 26, 36, 50 |
| RoHS Compliance | Compliant |
The connectors are offered in 14, 20, 26, 36, and 50 positions.
They are rated for operation from –20 °C to +85 °C.
Yes, it complies with the RoHS Directive 2002/95/EC.
The outer shell is made of glass‑reinforced polyester (PBT).
