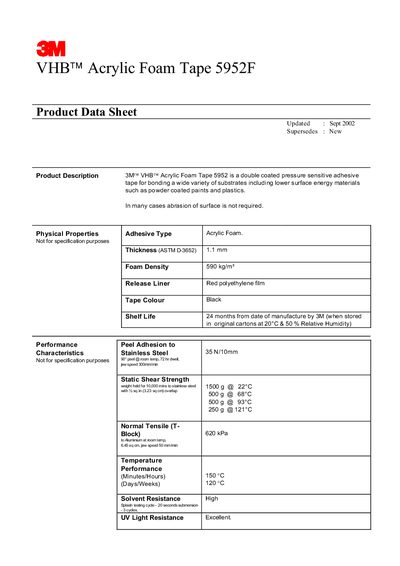

3M VHB Acrylic Foam Tape 5952 is a double coated pressure sensitive adhesive tape for bonding a wide variety of substrates including lower surface energy materials such as powder coated paints and plastics. In many cases abrasion of surface is not required.
The VHB™ acrylic foam tape 5952F is a double‑coated pressure‑sensitive adhesive designed for bonding a wide range of substrates, including low surface‑energy materials such as powder‑coated paints and plastics. It can often be applied without surface abrasion, provided the surfaces are clean, dry, and properly prepared.
Key performance figures include a 1.1 mm thickness, 590 kg/m³ foam density, 35 N/10 mm peel adhesion to stainless steel, and static shear strengths up to 1500 g at 22 °C. The tape offers high solvent resistance, excellent UV resistance, and retains strength up to 150 °C for short periods. Shelf life is 24 months when stored at 20 °C and 50 % relative humidity.
| Adhesive Type | Acrylic Foam |
|---|---|
| Thickness (ASTM D‑3652) | 1.1 mm |
| Foam Density | 590 kg/m³ |
| Release Liner | Red polyethylene film |
| Tape Colour | Black |
| Shelf Life | 24 months (20 °C, 50 % RH) |
| Normal Tensile (Block) | 620 kPa |
| Temperature Performance | 150 °C (minutes/hours), 120 °C (days/weeks) |
| Solvent Resistance | High |
| UV Light Resistance | Excellent |
Store the tape in its original cartons at 20 °C and 50 % relative humidity; it has a shelf life of 24 months from the date of manufacture.
Low surface‑energy plastics such as polyethylene, polypropylene, Teflon, silicones, and some plasticised vinyl are not recommended without sealing or priming.
