5413 Polyimide Film Tape is a tape consisting of a Kapton® polyimide film and silicone adhesive designed for high temperature applications.
The 3M 5413 Polyimide Film Tape consists of a Kapton® polyimide film with a silicone adhesive, supplied on a standard 36‑yard roll. It is designed for high‑temperature applications and offers flame‑retardant, chemical‑resistant, and release‑surface properties.

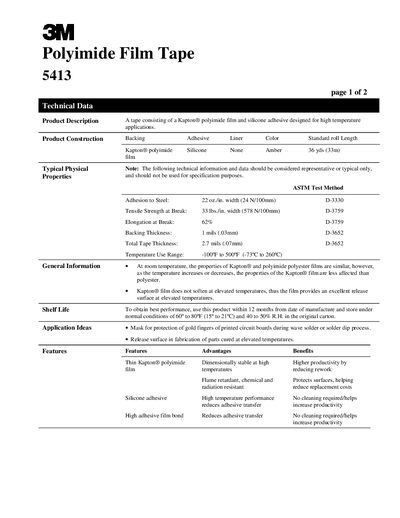

The handbook lists technical specifications such as temperature range, adhesion, tensile strength, and thickness, and includes application ideas like masking PCB gold fingers and providing a release surface for high‑temperature part fabrication. Warranty, liability, and contact information are also provided.
| Backing material | Kapton® polyimide film |
|---|---|
| Adhesive type | Silicone |
| Backing thickness | 1 mil (0.03 mm) |
| Total tape thickness | 2.7 mils (0.07 mm) |
| Temperature use range | -100 °F to 500 °F (-73 °C to 260 °C) |
| Adhesion to steel | 22 oz/in width (24 N/100 mm) |
| Tensile strength at break | 33 Ibs/in width (578 N/100 mm) |
| Elongation at break | 62 % |
| Shelf life | 12 months from manufacture |
| Roll length | 36 yds (33 m) |
It can be used from –100 °F to 500 °F (–73 °C to 260 °C).
The tape should be used within 12 months from the date of manufacture and stored at 60 °F‑80 °F (15 °C‑21 °C) with 40‑50 % relative humidity.
It is commonly used to mask gold fingers on printed circuit boards during wave soldering and as a release surface for parts cured at elevated temperatures.
3M offers a one‑year warranty from the date of manufacture, with repair, replacement, or refund as the sole remedy.
