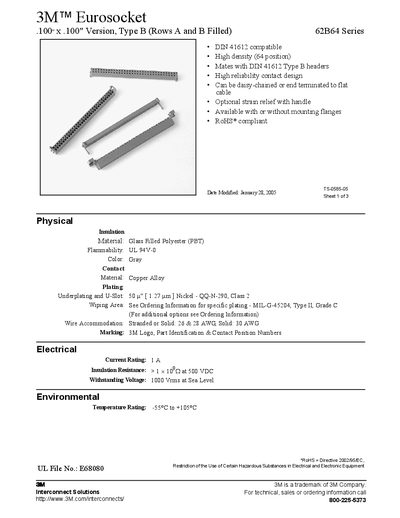

This document provides information about 3M's interconnect solutions, including the physical, electrical, and environmental characteristics of the 3M™ Eurosocket product. The product features high density, compatibility with DIN 41612 Type B headers, and a high reliability contact design.
The 62B64 Series Eurosocket is a DIN 41612 compatible, high‑density (64‑position) Type B connector designed for reliable interconnect solutions. It can be daisy‑chained or end‑terminated to flat cable and offers optional strain relief and mounting flanges. The socket meets RoHS requirements and is suitable for a wide range of electronic applications.
Technical details include material construction, electrical ratings, environmental limits, and dimensional data. The datasheet lists contact materials, plating specifications, current and voltage ratings, temperature range, and wiring accommodations, along with ordering information and warranty notices.
| Contact material | Copper Alloy |
|---|---|
| Plating | 50 µin (1.27 µm) Nickel - QQ-N-290, Class 2 |
| Current rating | 1 A |
| Withstanding voltage | 1000 Vrms at sea level |
| Temperature rating | -55 °C to +105 °C |
| Flammability | UL 94V‑0 |
| Insulation material | Glass Filled Polyester (PBT) |
| RoHS compliance | Yes |
| DIN compatibility | DIN 41612 compatible |
The socket is rated for a continuous current of 1 A.
It can operate from –55 °C up to +105 °C.
Yes, the socket is RoHS compliant.
The contacts are plated with 50 µin (1.27 µm) nickel, Class 2.
