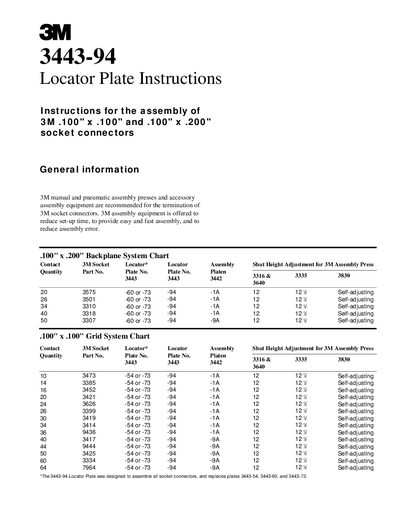

3M - 3443-94 Locator Plate Instructions Instructions for the assembly of 3M .100\" x .100\" .100\" x .20

About this manual

This manual provides step‑by‑step procedures for setting up and using the 3M 3443‑94 Locator Plate to assemble .100" × .100" and .100" × .200" socket connectors. It includes general information, plate adjustments, end‑guide setup, and detailed connector‑cable assembly steps.

The document also describes shut‑height adjustment for various assembly presses (3316, 3640, 3335, 3830) and offers safety and warranty notices for users of the 3M assembly equipment.

What's inside

• General information
• Set‑up procedures for sockets, cables and guides
• End guide adjustment
• Shut height adjustment procedures
• Connector/cable assembly procedures

Specifications

Frequently asked questions

Which socket connectors can be assembled with the 3443-94 Locator Plate?

It can assemble .1" × .1" and .1" × .2" socket connectors with and without the center bump feature.

How is the shut height adjusted on a 3316 press?

Place the shut‑height gauge, then turn the adjustment knob until the bottom of the press shaft contacts the desired position on the gauge.

How do you set up the end guide for a 1" × .2" connector?

Lift and rotate the end guide 180° so the viewing port points to the 1" × .2" label guide.
