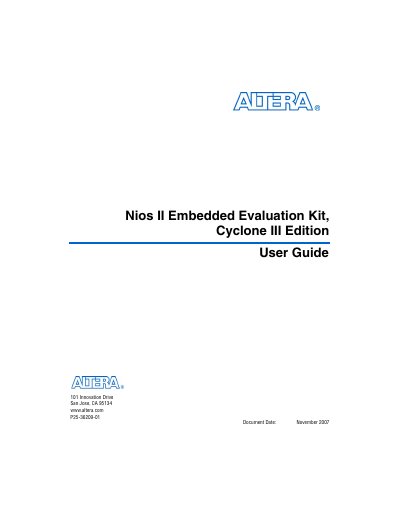

This document is the user guide for Altera's Nios II Embedded Evaluation Kit, Cyclone III Edition. The evaluation kit is used for embedded system development and features the Cyclone III chip.
The Nios II Embedded Evaluation Kit Cyclone III Edition is a development board that includes an Altera Cyclone III FPGA, LCD controller, memory and communication interfaces, and a 12 V DC power supply. It is intended for engineers to prototype embedded systems using the Nios II soft processor.
The guide covers unpacking the kit, installing the Altera Complete Design Suite, configuring the board, running the Application Selector utility, and using example applications such as Picture Viewer, Mandelbrot, and Web Server. Appendices provide detailed hardware information, FAQ troubleshooting, and instructions for rebuilding the factory image.
| FPGA | Altera Cyclone III FPGA |
|---|---|
| Processor Core | Nios II core (32‑bit soft processor) |
| LCD Controller | Integrated LCD controller |
| Memory Controllers | Multi‑port memory controllers |
| Communication Interfaces | Communication Interface controllers |
| Power Supply | 12 V DC power supply |
The error indicates the CFI table address is incorrect or the address format is wrong; verify the address and the required “‑‑” characters before “base”.
Refer to Appendix C, “Re‑building the Factory Image”, for step‑by‑step instructions.
The license can be obtained from the Altera website licensing page as described in the FAQ section.
Create a BSP for your design, build the project, and place the compiled files in the appropriate SD‑Card directory as explained in Appendix B.
