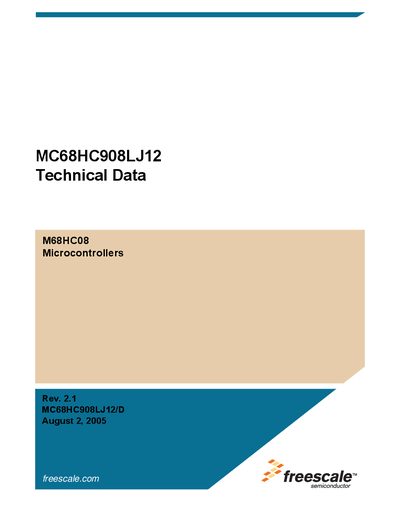

This document provides technical data, features, and characteristics of the M68HC08 Microcontrollers from Freescale. The specific product discussed is the MC68HC908LJ12.
The MC68HC908LJ12 Technical Data document provides detailed information for system and software implementers using this Freescale microcontroller. It includes general description, memory map, and functional descriptions of core modules such as CPU, RAM, FLASH, and peripheral interfaces.
The handbook is organized into sections covering configuration registers, oscillator, clock generator, system integration, timer, real‑time clock, communication interfaces (IRS, SPI, UART), ADC, LCD driver, I/O ports, interrupt modules, as well as electrical and mechanical specifications and ordering information. Revision history and contact details for Freescale support are also included.
