PC 1202-A is a 55.7 x 32.0mm LCD module that supports STN, TN, and FSTN screens with LED backlight.

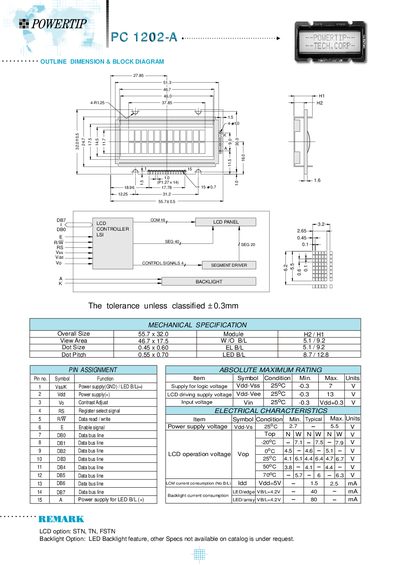

This manual describes the mechanical and electrical characteristics of the Powertip PC1202-A LCD module, including dimensions, dot specifications, and pin assignments. It also outlines the coding system used for configuring the display and details the various backlight options available.
Additional sections cover optical characteristics, temperature ranges, and handling precautions for EL, CCFL, and LED backlights. The document includes typical electrical parameters and application notes for integrating the module into devices.
| Overall Size | 55.7 x 32.0 mm |
|---|---|
| View Area | 46.7 x 17.5 mm |
| Dot Size | 0.45 x 0.60 mm |
| Dot Pitch | 0.55 x 0.70 mm |
| LED Backlight Supply Voltage | 4.2 V |
| LED Backlight Current | 80 mA |
| Operating Temperature Range | 0 °C to +50 °C |
| Storage Temperature Range | -20 °C to +60 °C |
| Power Supply Pin (Vdd) | Pin 2 – LCD driving supply voltage |
The module can be equipped with EL, CCFL, or LED backlights.
It operates from 0 °C to +50 °C, with storage limits of -20 °C to +60 °C.
The LED backlight uses a 4.2 V supply and draws about 80 mA.
Pin 2 is the Vdd power supply (+) for LCD driving.
