This document is about the technical specifications of OKAYA sample code, including the features, mechanical specifications, DC electrical characteristics, optical characteristics, backlight characteristics, etc.

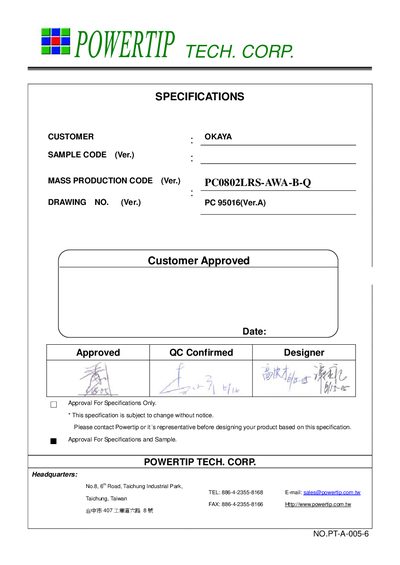

The handbook provides complete specifications for the Powertip PC0802LRS-AWA-B-Q LCD module, covering display features, mechanical dimensions, electrical and optical characteristics, and backlight performance.
It also includes quality‑assurance procedures, reliability test conditions, handling and safety precautions, storage guidelines, and warranty terms for users and integrators.
| Display Type | 8*2 Characters |
|---|---|
| LCD Type | STN Gray Positive Transflective Normal Temp. |
| Outline Dimension | 58.0 mm (L) × 32.0 mm (W) × 14.0 mm (H) |
| Power Supply Voltage (Vpp) | -0.3 V to 7.0 V |
| Logic Supply Voltage (Vpp) | 4.5 V to 5.5 V |
| Backlight Forward Current | 120 mA |
| Backlight Reverse Voltage | 8 V |
| Operating Temperature | 0 °C to 50 °C |
| Storage Temperature | -40 °C to 80 °C |
The maximum forward current is 120 mA.
The warranty period is thirteen months from the shipping date.
Soldering should be done at 320 °C ±10 °C for 3‑5 seconds.
Store the module in a dark place at 25 °C ±5 °C with humidity below 65 % RH.
