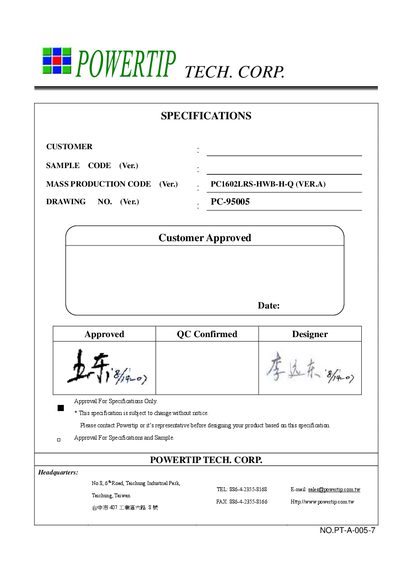

This is a specification for a 16x2 LCD liquid crystal display module product
The PC1602LRS-HWB-H-Q is a 16‑character STN gray‑transflective LCD module with a yellow‑green LED backlight. It offers a compact size (85 × 36 × 14.5 mm) and low power consumption, making it suitable for a variety of electronic devices.
The handbook lists full specifications, including electrical ratings, optical performance, handling precautions, warranty terms, and packing details, ensuring designers have all necessary data for integration and reliable use.
| Display Type | 16 > 2 Characters |
|---|---|
| LCD Type | STN Gray Transflective Positive Extended Temp. |
| Backlight Color | Yellow‑Green LED |
| Weight | 34.0 g |
| Outline Dimension | 85.0 × 36.0 × 14.5 mm |
| Viewing Area | 66.0 × 16.0 mm |
| Dot Size | 0.56 × 0.66 mm |
| Power Supply Voltage (Vpp) | -0.3 V to 7.0 V |
| Logic Supply Voltage (Vpp) | 4.5 V to 5.5 V |
| Operating Temperature | -20 °C to 70 °C |
| Forward Current (Backlight) | 300 mA |
| Forward Voltage (Backlight) | 4.2 V to 4.6 V |
Store the module in a dark place at 25 °C ± 5 °C with humidity below 65 %RH.
The warranty lasts for thirteen months from the date of shipping under normal use and storage conditions.
The backlight forward current is limited to 300 mA.
It provides a 16‑character STN gray‑transflective LCD display.
