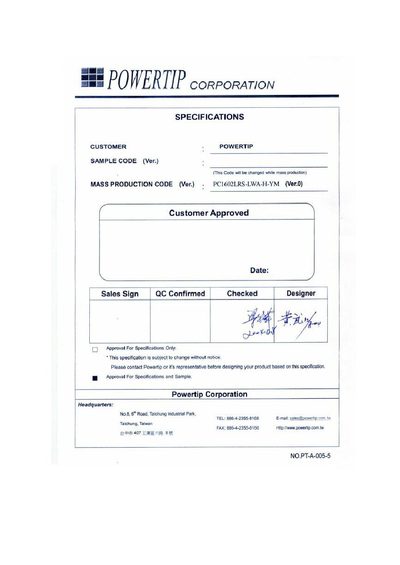

This document describes the specifications and features of the PC1602LRS-LWA-H-YM Ver.0 (DK) display module, including mechanical specifications, absolute maximum ratings, DC electrical characteristics, optical characteristics, backlight characteristics, etc.
The PC1602LRS-LWA-H-YM is a 16‑by‑2 character STN LCD module with a gray, transflective display and yellow‑green LED backlight. It is designed for use in general electronic equipment and includes detailed mechanical and electrical specifications.
The document lists the module's dimensions, voltage ranges, temperature limits, backlight performance, and reliability test procedures, as well as safety and handling precautions to ensure proper integration and long‑term operation.
| Display Type | 16 × 2 characters |
|---|---|
| LCD Type | STN, Gray, Transflective, Positive, Extended Temp. |
| Outline Dimension | 122.0 × 44.0 × 14.0 mm (max) |
| Viewing Area | 99.0 × 24.0 mm |
| Power Supply Voltage | -0.3 to 7.0 V |
| Logic Supply Voltage | 4.8 to 5.2 V |
| Forward Current (Backlight) | 480 mA |
| Operating Temperature | -20 °C to 70 °C |
| Backlight Forward Voltage (240 mA) | 4.0 – 4.6 V |
The module operates from –20 °C to 70 °C.
The backlight forward voltage is between 4.0 V and 4.6 V at 240 mA.
Avoid strong mechanical shock, static electricity, and touching the polarizing plate; handle with care and ground yourself when working with the module.
