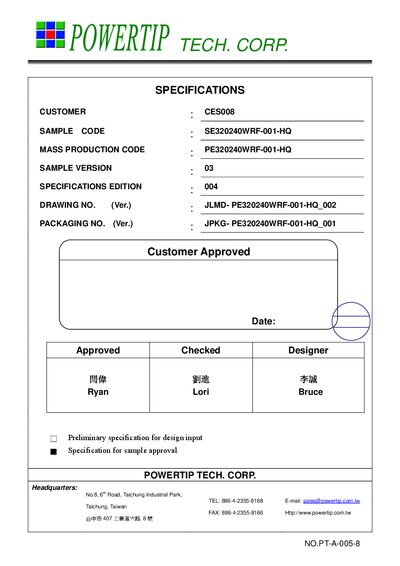

Technical specification for the PowerTip PE320240WRF-001-HQ 320×240 LCD module with detailed mechanical, electrical and optical data.
This document provides the complete technical data for the PowerTip PE320240WRF-001-HQ LCD module, including features, dimensions, electrical ratings, optical performance, backlight characteristics and reliability test procedures.
It also contains handling precautions, storage guidelines, warranty terms and a list of applicable standards for designers and manufacturers who need to integrate the module into electronic products. This manual is written in Chinese.
| Display Type | FSTN, Positive, Transflective |
|---|---|
| Resolution | 320 × 240 Dots |
| Outline Dimension | 143.0 mm × 96.8 mm × 12.6 mm (L×W×H) |
| Power Supply Voltage (VDD‑VSS) | -0.3 V to +7.0 V |
| Operating Temperature | -20 °C to 70 °C |
| Backlight Type | LED |
| Interface | 4‑bit parallel data input |
| Contrast Ratio | 6 |
| Storage Temperature | -30 °C to +80 °C |
The module can be stored from –30 °C to +80 °C.
The backlight operates with VDD between 4.5 V and 5.5 V.
The warranty period is thirteen months from the shipping date.
