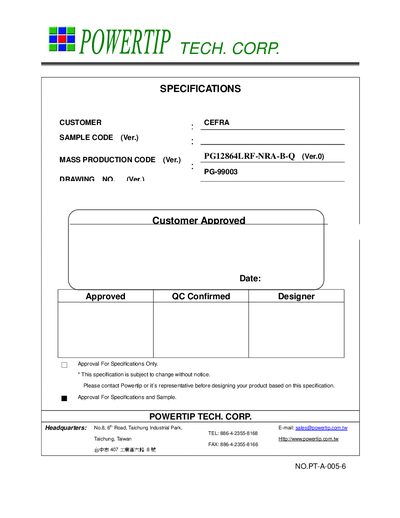

This document is PG12864LRF-NRA-B-Q's specification, which introduces the product's features and characteristics, including mechanical specifications, absolute maximum ratings, DC electrical characteristics, optical characteristics, backlight characteristics, module structure, quality assurance system, reliability test, product operation precautions, etc.
The PG12864LRF-NRA-B-Q is a 128 × 64 dot FSTN LCD module with a yellow‑green LED backlight. It features a 1/64 duty, 1/9 bias driver, 6 o'clock viewing direction, and a compact size suitable for embedded applications.
The document lists mechanical dimensions, absolute maximum ratings, DC electrical and optical characteristics, backlight specifications, module structure, reliability test procedures, and safety and handling precautions for the product.
| Display Type | 128 × 64 dots |
|---|---|
| LCD Type | FSTN, White, Transflective |
| Outline Dimension | 55.2 mm × 39.8 mm × 6.5 mm |
| Operating Temperature | 0 °C to 50 °C |
| Backlight | Yellow‑green LED |
| Forward Current (Backlight) | 100 mA |
| Forward Voltage (Backlight) | 2.1 V to 2.5 V |
| Weight | 15 g |
The module measures 55.2 mm × 39.8 mm × 6.5 mm (L × W × H).
It operates from 0 °C up to 50 °C.
The module uses a yellow‑green LED backlight with a maximum forward current of 100 mA.
