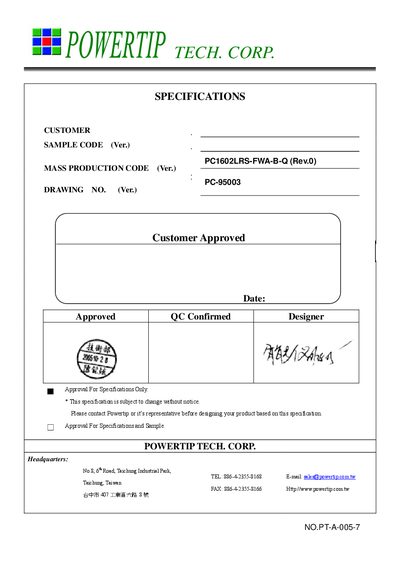

This is a product specification sheet that introduces the features and characteristics of the PC1602LRS-FWA-B-Q LCD display module.
The PC1602LRS-FWA-B-Q is a 16‑by‑2 character STN gray positive transflective LCD module with a yellow‑green LED backlight. It offers a 1/16 duty cycle, 1/5 bias, and a viewing direction of 6 o'clock. Mechanical dimensions are 84 mm × 44 mm × 13.7 mm (L × W × H) with an active display area of 56.21 mm × 11.5 mm.
The handbook lists absolute maximum ratings, DC electrical characteristics, optical and backlight specifications, as well as reliability test procedures and safety handling instructions. It also defines the warranty period of thirteen months from shipment.
| Display Type | 16*2 Characters |
|---|---|
| LCD Type | STN Gray Positive Transflective Normal Temp. |
| Viewing Area | 61.0 mm × 15.8 mm |
| Power Supply Voltage (Vpp) | -0.3 V to 7.0 V |
| Logic Supply Voltage (Vpp) | 4.5 V to 5.5 V |
| Backlight Forward Current (IF) | max 300 mA |
| Operating Temperature | 0 °C to 50 °C |
| Storage Temperature | -20 °C to 70 °C |
The module operates from 0 °C up to 50 °C.
The backlight forward current is limited to 300 mA at 25 °C.
Avoid strong mechanical shock, static electricity, and touching the polarizing plate; handle with care and use proper cleaning solvents.
The warranty period is thirteen months from the date of shipment under normal conditions.
