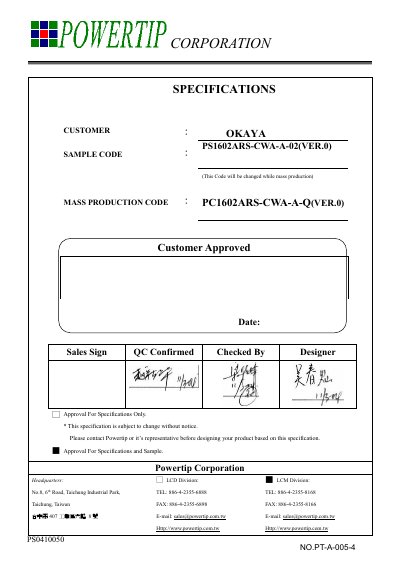

This document is a specification for OKAYA sample code and mass production code. It includes features and characteristics, mechanical specifications, DC electrical characteristics, optical characteristics, etc. of the product.
The PC1602ARS-CWA-A-Q is a 16‑by‑2 character STN gray positive reflective LCD module with a 1/16 duty and 1/4 bias driver. Its outline measures 80.0 mm × 36.0 mm × 10.2 mm and the viewing area is 61.0 mm × 16.0 mm.
The datasheet provides detailed electrical ratings, pin assignments, safety and handling instructions, warranty terms, jumper settings, and packaging dimensions. It also references related driver ICs (Sitronix ST7066, Samsung KS0065B) for further design information.
| Display Type | 16*2 Characters |
|---|---|
| LCD Type | STN Gray Positive Reflective Normal Temp. |
| Outline Dimension | 80.0 mm × 36.0 mm × 10.2 mm |
| Viewing Area | 61.0 mm × 16.0 mm |
| Power Supply Voltage (Vpp) | -0.3 V to 7.0 V |
| Logic Supply Voltage | 4.5 V to 5.5 V |
| Contrast Ratio | 5 to 7 |
| Response Time (rise) | up to 150 ms |
| Box Size | 310 mm × 255 mm × 55 mm |
The module measures 80.0 mm in length, 36.0 mm in width, and 10.2 mm in height.
The power supply voltage (Vpp) can be from –0.3 V up to 7.0 V.
Avoid strong mechanical shock, static electricity, and touching the polarizing plate; handle with gloves, use soft cloths, and keep the panel away from solvents.
The warranty period is thirteen months from the shipping date under normal use and storage conditions.
