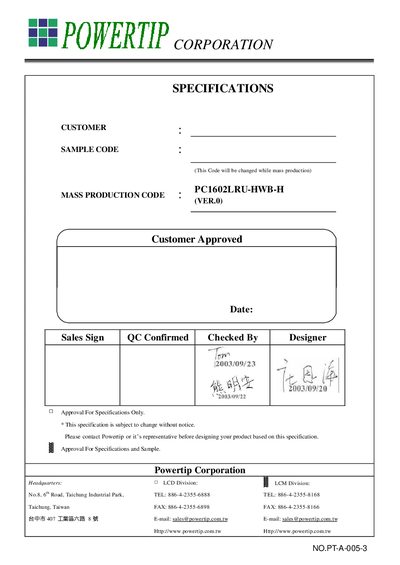

This document provides specifications and characteristics of the PC1602LRU-HWB-H LCD display module.
The PC1602LRU-HWB-H is a 16‑by‑2 character LCD module with STN, yellow‑green, positive‑view, transflective technology. It features a 1/16 duty, 1/4 bias driver, 6 o’clock viewing direction, and a yellow‑green LED backlight. Mechanical dimensions are 85 mm × 36 mm × 14.5 mm (max height) with a viewing area of 66 mm × 16.2 mm.
The handbook details electrical ratings, optical performance, reliability test procedures, and handling precautions. The module operates from –20 °C to 70 °C, with a 13‑month warranty, and includes guidelines for storage, soldering, and safety.
