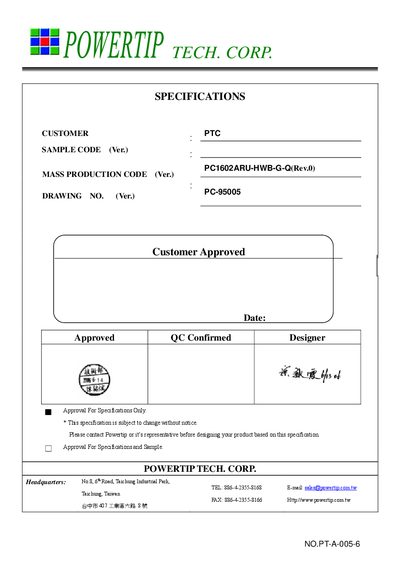

This document is a specification sheet of PC1602ARU-HWB-G-Q, which details the features, mechanical specifications, absolute maximum ratings, DC electrical characteristics, etc. of the model.
The PC1602ARU-HWB-G-Q is a 16×2 character STN LCD module with a reflective YG positive display, designed for use in general electronic equipment. It features a 1/16 duty cycle, 1/5 bias, and a viewing direction of 6 o'clock.
The datasheet provides detailed mechanical dimensions, absolute maximum ratings, DC electrical and optical characteristics, pin assignments, reliability test conditions, and safety and handling precautions. It also notes RoHS compliance and warranty terms.
| Display Type | 16×2 Characters |
|---|---|
| LCD Type | STN, YG Positive, Reflective |
| Outline Dimension (L×W×H) | 85.0 mm × 36.0 mm × 10.2 mm |
| Viewing Area | 66.0 mm × 16.2 mm |
| Power Supply Voltage (Vpp) | -0.3 V to 7.0 V |
| Logic Supply Voltage (Vpp) | 5.0 V to 5.5 V |
| Contrast Ratio | 5 to 7 (at 5°/0°) |
| Response Time (rise) | ≤200 ms |
| Response Time (fall) | ≤150 ms |
| Operating Temperature | -20 °C to 70 °C |
The module operates from –20 °C up to 70 °C.
Soldering should be done at 320 ± 10 °C for 3–5 seconds.
Yes, the part number is listed as RoHS compliant.
