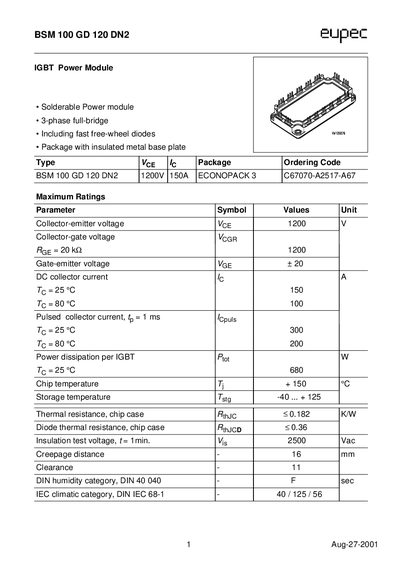

BSM 100 GD 120 DN2 is an IGBT power module from Infineon with a maximum collector-emitter voltage of 1200 V and a maximum collector current of 150 A.
The BSM 100 GD 120 DN2 is a 3‑phase full‑bridge IGBT power module with fast free‑wheel diodes and an insulated metal base plate. It is rated for 1200 V collector‑emitter voltage and 150 A continuous collector current at 25 °C.
The document provides maximum ratings, detailed static and switching characteristics, safe operating area limits, capacitance values and usage terms. It is intended for technically trained personnel and includes warranty and safety notices.
| Collector‑emitter voltage (VCE) | 1200 V |
|---|---|
| Continuous collector current (Ic) at 25 °C | 150 A |
The module is rated for a collector‑emitter voltage of 1200 V.
It can handle up to 150 A of continuous collector current at 25 °C.
