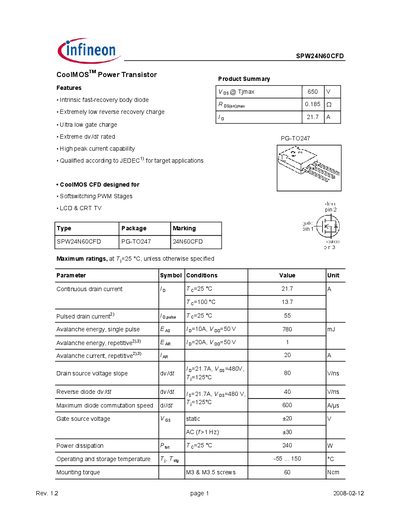

This is a CoolMOSTM power transistor product with inherent fast recovery body diode, extremely low reverse recovery charge, ultra low gate charge, extreme dv /dt rating, high peak current capability and other features.
The SPW24N60CFD is a CoolMOS power transistor designed for soft‑switching PWM stages in LCD and CRT TV applications. The document lists its key features such as an intrinsic fast‑recovery body diode, ultra‑low gate charge, and high peak current capability.
Detailed specifications cover continuous and pulsed drain currents, avalanche energy, thermal resistance, on‑state resistance, gate charge characteristics, and mechanical dimensions. Legal and safety notices are included at the end of the sheet.
| Continuous drain current (Id) at 25 °C | 21.7 A |
|---|---|
| Maximum drain‑source voltage (VDS) | 480 V |
The continuous drain current is 21.7 A at 25 °C.
The device is rated for a maximum drain‑source voltage of 480 V.
