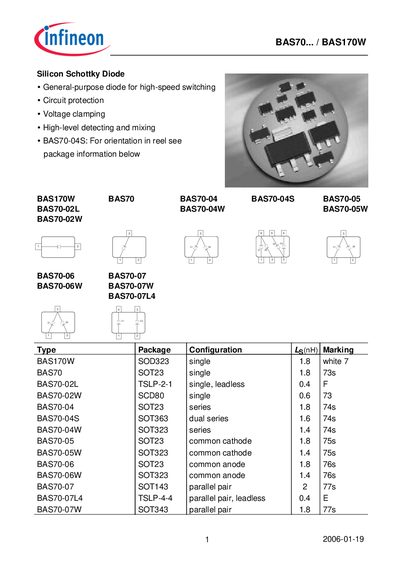

This document describes the features and characteristics of the BAS70 series silicon Schottky diodes released in 2006, including applications, package types, and maximum ratings.
This datasheet provides the electrical characteristics, maximum ratings, and package information for the Infineon BAS70 series and the BAS170W Schottky diode. It includes reverse voltage, forward current, power dissipation, thermal resistance, and temperature limits.
The document also contains package outlines, marking details, and legal notices from Infineon Technologies AG. It is intended for designers and engineers selecting Schottky diodes for high‑speed switching, circuit protection, and voltage clamping applications.
| Diode reverse voltage (Va) | 70 V |
|---|---|
| Forward current (Ir) | 70 mA |
| Thermal resistance (RθJC) BAS70 | ≤ 310 K/W |
The reverse voltage rating (Va) is 70 V.
The maximum forward current (Ir) is 70 mA.
