Infineon IKCS12F60AA Datasheet

This document describes the features and characteristics of the Power Management & Drives Control integrated Power System (CIPOS™) IKCS12F60AA product from Infineon Technologies.

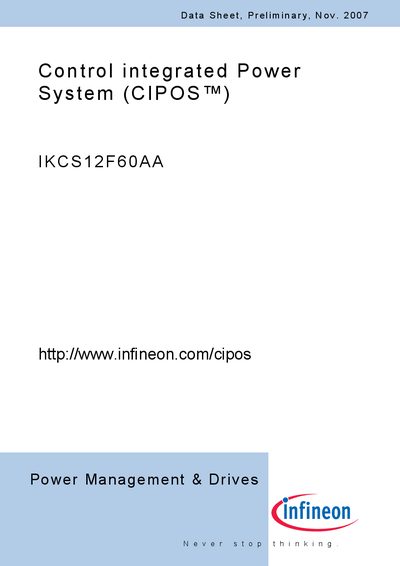

Infineon IKCS12F60AA Datasheet - cover page
Brand
Infineon
Category
Other
Document type
Datasheet
Language
English
Pages
17
File format
PDF
File size
514 KB
Published
06 April, 2012
Updated
29 September, 2023
MD5 checksum
6998A569C1F6B4993F42AD1311B1CD7B

About this manual

The Infineon IKCS12F60AA is a Control Integrated Power System (CIPOS) single‑in‑line intelligent power module offering a fully isolated 30‑bridge solution (600 V/12 A) for AC motor drives and other power applications. It integrates TrenchStop® IGBTs, EmCon™ diodes, bootstrap circuitry and a SOI gate driver with temperature monitoring and over‑temperature shutdown.

The datasheet provides detailed electrical schematics, pin descriptions, absolute maximum ratings, static and dynamic parameters, as well as mechanical package dimensions. It also outlines recommended operating conditions, protection features such as over‑current detection, undervoltage lockout, and short‑circuit handling.

What's inside

  • Features
  • Target Applications
  • Description
  • System Configuration
  • Internal Electrical Schematic
  • Pin Assignment
  • Absolute Maximum Ratings
  • Static Parameters
  • Dynamic Parameters
  • Package Outline

Specifications

Bridge rating600 V / 12 A @ 25 °C
Typical propagation delay (EN pin)700 ns
ITRIP comparator threshold0.45 V (typ)
Minimum input pulse width1 µs
Maximum bus voltage500 V

Frequently asked questions

What is the typical propagation delay for the EN pin?

The typical propagation delay time for the EN pin is 700 ns.

What is the over‑current detection threshold of the ITRIP input?

The ITRIP comparator threshold is typically 0.45 V.

What is the recommended minimum input pulse width?

Input pulse widths should not be lower than 1 µs.

What is the maximum allowed bus voltage for the module?

The bus voltage should not exceed 500 V.

Download PDF (514 KB)
