The BTS650P is a high-side high current power switch with the following features: overload protection, current limiting, short circuit protection, overtemperature protection, overvoltage protection (including load dump), output negative voltage clamp, fast deenergizing of inductive loads, low ohmic inverse current operation, Reversave (Reverse battery protection), diagnostic feedback with load current sense, open load detection via current sense, loss of Vbb protection, electrostatic discharge protection.
The BTS650P is a smart high‑side high‑current power switch with integrated protection functions such as overload, over‑voltage, short‑circuit and over‑temperature protection. It includes a charge‑pump, current‑sense diagnostic feedback and a reversible battery‑protection (Reversave™) feature, making it suitable for 12 V and 24 V DC grounded loads.

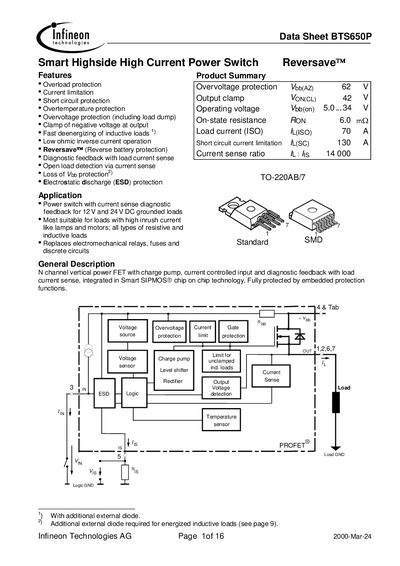

The document provides detailed electrical characteristics, pin definitions, thermal data, protection function limits, diagnostic characteristics and package dimensions for the TO‑220AB/7 package. It also contains a truth table for input/output behavior and guidelines for external diode usage.
| Overvoltage protection (Vpp) | 62 V |
|---|---|
| On‑state resistance (Ron) typical | 6.0 mΩ |
| Short‑circuit current limitation | 130 A |
| Operating voltage range | 5.0 V – 34 V |
| Power dissipation (DC) | 170 W |
The typical on‑state resistance is 6.0 mΩ.
The device can limit short‑circuit current to 130 A.
The operating voltage range is from 5.0 V to 34 V.
