The SPP15N60CFD CoolMOSTM power transistor features intrinsic fast-recovery body diode, extremely low reverse recovery charge, ultra-low gate charge, extreme dv/dt rating, high peak current capability, and is designed for soft-switching PWM stages, LCD & CRT TV applications.
The SPP15N60CFD is a CoolMOS power transistor offered by Infineon Technologies. It features an intrinsic fast‑recovery body diode, ultra‑low gate charge, and a high peak current capability, making it suitable for soft‑switching PWM stages and TV power supplies.

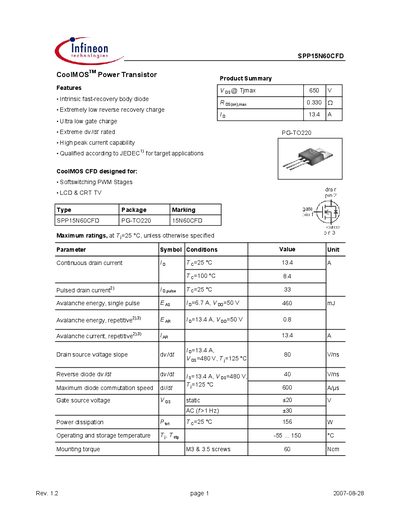

The datasheet lists maximum ratings, thermal and electrical characteristics, dynamic behavior, and package dimensions. Key parameters include continuous drain current, breakdown voltage, on‑state resistance, gate charge, and capacitances, together with safe operating area and avalanche energy limits.
| Continuous drain current (Id) @ 25 °C | 13.4 A |
|---|---|
| Gate charge total (Qg) | 63 nC |
| Input capacitance (Ciss) | 1820 pF |
| Reverse recovery charge (Qrr) | 1 µC |
The device can conduct a continuous drain current of 13.4 A at 25 °C.
The total gate charge is 63 nC.
