This product is a high side power switch, which features overload protection, current limitation, short circuit protection, thermal shutdown, overvoltage protection, fast demagnetization, reverse battery protection, undervoltage and overvoltage shutdown, open drain diagnostic output, open load detection, CMOS compatible input, ground referenced and loss of Vbb protection, electrostatic discharge (ESD) protection.
The PROFET® ITS 410 E2 is a smart high‑side power switch designed for industrial applications. It integrates a vertical N‑channel power FET with a charge pump, CMOS‑compatible input, and extensive diagnostic feedback, allowing it to replace electromechanical relays, fuses, and discrete circuits.

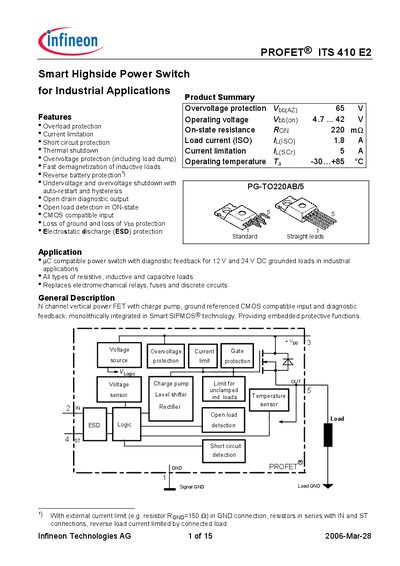

The datasheet details the device’s pinout, maximum ratings, electrical characteristics, built‑in protection functions (overload, short‑circuit, thermal shutdown, over‑/under‑voltage, load‑dump, reverse‑battery, ESD, etc.), thermal parameters, and package dimensions, enabling designers to select and implement the component safely and efficiently.
| Overvoltage protection voltage | 65 V |
|---|---|
| Operating voltage (Vbb on) | 47–42 V |
| On‑state resistance (RON) | 220 mΩ |
| Maximum load current (ISO) | 18 A |
| Input voltage range | -0.5 V to +6 V |
| Package type | PG‑TO220AB/5 |
The device can handle up to 18 A of load current according to the ISO rating.
The typical on‑state resistance is 220 mΩ.
It is supplied in a PG‑TO220AB/5 package.
