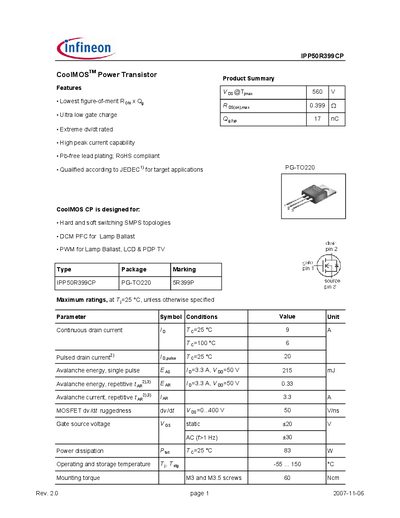

IPP50R399CP is a CoolMOSTM power transistor that features the lowest RON x Qg figure-of-merit, ultra-low gate charge, extreme dv/dt rating, high peak current capability, lead-free lead plating and RoHS compliance. It is qualified according to JEDEC1) for target applications.
The IPP50R399CP is a CoolMOS™ power transistor designed for hard and soft switching SMPS topologies, DCM PFC, and lamp‑ballast applications. It offers ultra‑low gate charge, low on‑resistance, and high peak current capability while complying with RoHS.
The datasheet lists maximum ratings, thermal and electrical characteristics, dynamic behavior, and typical output curves. Key parameters such as continuous drain current, gate threshold voltage, on‑state resistance, and avalanche energy are detailed for designers.
| Continuous drain current (Id) | 9 A |
|---|---|
| Pulsed drain current (Id,pulse) | 20 A |
| Power dissipation (Pd) at 25 °C | 83 W |
The device can handle a continuous drain current of 9 A at 25 °C.
It can dissipate up to 83 W at 25 °C.
