This document is a specification sheet for a product, describing its features and characteristics, including operating voltage, temperature range, current, etc.

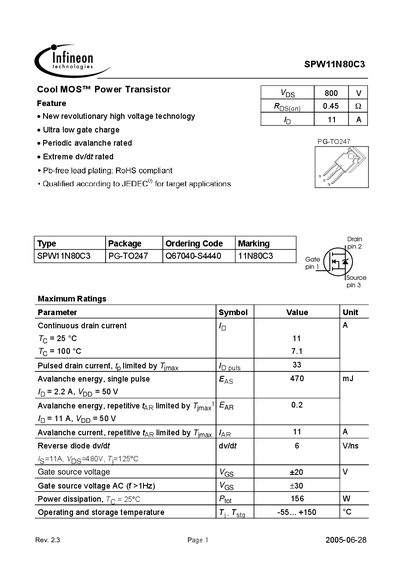

The SPW11N80C3 is a Cool MOS™ power transistor featuring ultra‑low gate charge, high voltage capability and a periodic avalanche‑rated PG‑TO247 package. It is RoHS‑compliant and qualified according to JEDEC® for target applications.
The document lists maximum ratings, thermal characteristics, detailed electrical parameters, gate‑charge data, safe operating area and mechanical dimensions, enabling designers to evaluate the device for high‑power switching applications.
| Power Dissipation (at 25 °C) | 156 W |
|---|---|
| Operating Temperature Range | -55 °C to +150 °C |
