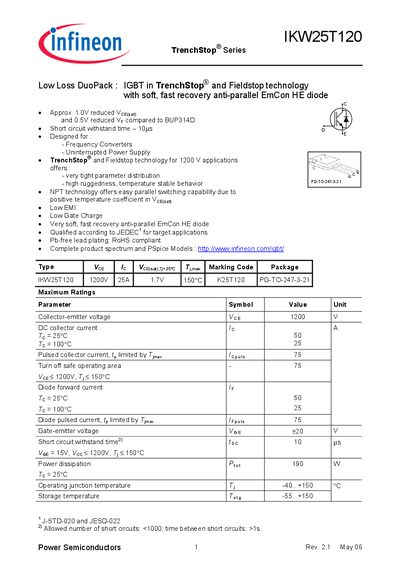

IKW25T120 is a low loss DuoPack IGBT from Infineon, which is produced using TrenchStop and Fieldstop technology and features a soft, fast recovery anti-parallel EmCon HE diode.
The IKW25T120 is a 1200 V, 25 A IGBT from Infineon's TrenchStop® series, designed for frequency converters and UPS applications. It features low loss, low EMI, low gate charge and a fast‑recovery anti‑parallel diode.
Key specifications include a collector‑emitter voltage of 1200 V, continuous collector current of 25 A, power dissipation of 190 W at 25 °C, and a turn‑on delay of 50 ns. The device complies with JEDEC, RoHS and J‑STD‑020 standards and is supplied in a TO‑247‑3‑21 package.
| Collector‑emitter voltage (VCE) | 1200 V |
|---|---|
| Continuous collector current (IC) | 25 A |
| Gate‑emitter voltage (VGE) | +20 V |
| Power dissipation (PD) at 25 °C | 190 W |
| Turn‑on delay time (t_on) at 25 °C | 50 ns |
The IKW25T120 can withstand a collector‑emitter voltage of up to 1200 V.
It is rated for a continuous collector current of 25 A.
The device can dissipate up to 190 W at a case temperature of 25 °C.
