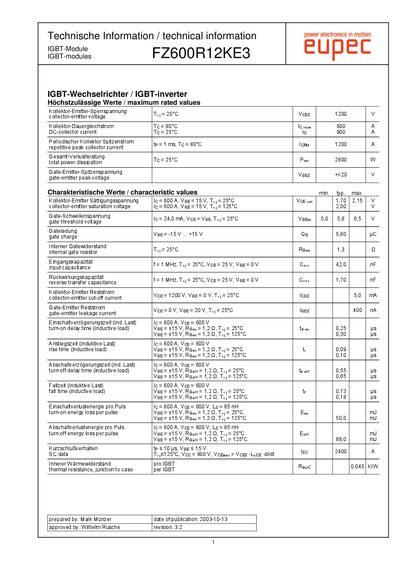

This document provides technical information about the FZ600R12KE3 IGBT module, including maximum rated values and characteristic values.
The EUPEC FZ600R12KE3 is an IGBT module designed for high‑power inverter applications. This datasheet provides the maximum rated values, characteristic electrical parameters, and thermal resistance data required for system design.
Additional information includes package outline dimensions, recommended mounting torque, switching loss curves, and usage conditions for qualified technical personnel. This manual is written in German.
| Collector‑emitter voltage (Vces) | 1200 V |
|---|---|
| Continuous collector current (Ic nom) | 600 A |
| Total power dissipation (Prot) | 2800 W |
| Input capacitance (Cies) | 42.0 nF |
| Maximum junction temperature (Tj max) | 150 °C |
| Mounting torque (M6 screw) | 6.00 Nm |
The module is rated for a collector‑emitter voltage of 1200 V.
It can carry a continuous collector current of 600 A.
A torque of 6.00 Nm is recommended for the M6 mounting screws.
The maximum allowable junction temperature is 150 °C.
