The FP40R12KE3 is an IGBT module from Infineon with a 1600V reverse voltage, a maximum DC current of 60A, a surge current of 315A, and a total power dissipation of 200W.

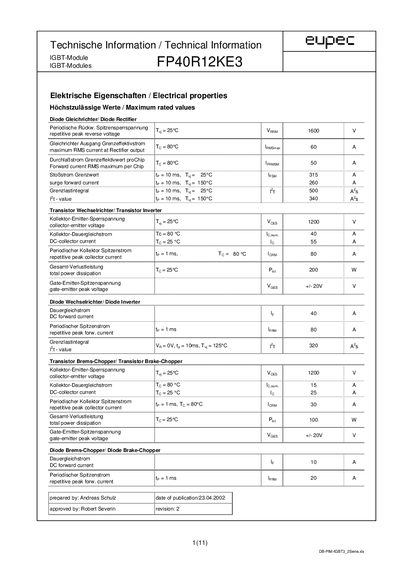

This datasheet provides detailed electrical characteristics of the FP40R12KE3 IGBT module, including maximum reverse voltage, forward current ratings, collector‑emitter voltage limits, and power dissipation values. It also lists thermal parameters such as junction‑to‑case resistance and operating temperature ranges.
Mechanical information such as module weight, pin clearance, and mounting torque is included, together with a circuit diagram, package outline dimensions, and usage conditions for qualified technical personnel.
| Weight | 180 g |
|---|
