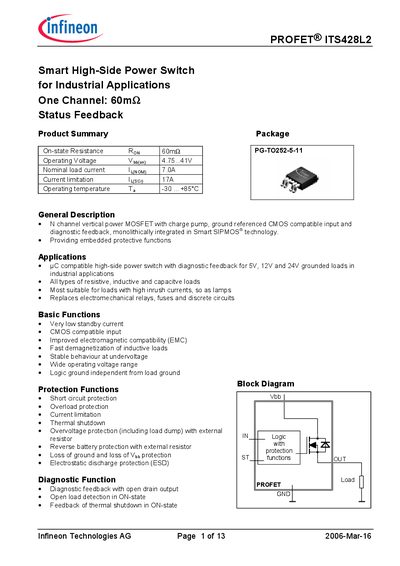

PROFET® ITS428L2 is a smart high-side power switch for industrial applications. It integrates a high-performance N-channel vertical power MOSFET, charge pump, ground referenced CMOS compatible input and diagnostic feedback, monolithically integrated in Smart SIPMOS® technology.
The PROFET® ITS428L2 is a smart high‑side power switch designed for industrial applications. It integrates a vertical N‑channel MOSFET with a charge pump, CMOS‑compatible input, and diagnostic feedback, offering low standby current, fast demagnetization, and wide operating voltage range.
The document details electrical characteristics, maximum ratings, pin functions, protection features such as short‑circuit, overload, thermal shutdown, over‑voltage, reverse‑battery and ESD protection, as well as package dimensions and ordering codes. It also includes application notes for resistive, inductive and capacitive loads and guidance on external components like a 150 Ω GND resistor.
| On‑state resistance (Ron) | 60 mΩ |
|---|
The on‑state resistance is 60 mΩ.
The device operates from –30 °C to +85 °C.
