IKW50N60T is a IGBT product launched by Infineon. It uses TrenchStop® and Fieldstop technology and has the characteristics of low voltage drop, high reliability, high heat resistance, etc. This product is suitable for frequency converters and uninterrupted power supply applications.
The IKW50N60T belongs to Infineon's TrenchStop® series of low‑loss IGBTs designed for frequency converters and UPS applications. The device features a very low on‑state voltage, high ruggedness, low EMI and a fast recovery anti‑parallel diode.

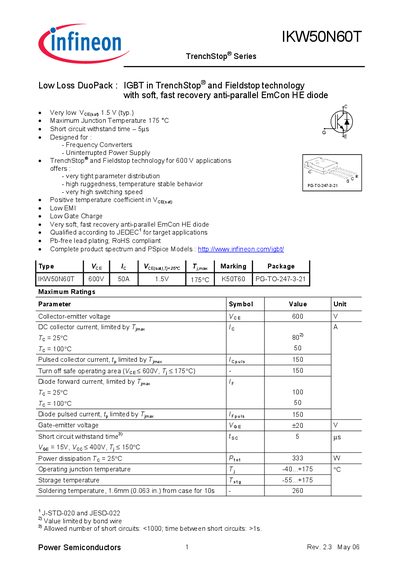

The datasheet lists maximum ratings, thermal resistances, static and dynamic electrical characteristics, switching times, gate charge and typical output curves, together with graphs of power dissipation and short‑circuit withstand time.
| Collector‑emitter voltage (VCE) | 600 V |
|---|---|
| Power dissipation at 25 °C (P_D) | 333 W |
| Short‑circuit withstand time | 5 µs |
| Operating junction temperature range | -40 °C to 175 °C |
| Maximum DC collector current (IC) | 80 A (25 °C) |
The device is rated for a maximum collector‑emitter voltage of 600 V.
It can dissipate up to 333 W at a case temperature of 25 °C.
The short‑circuit withstand time is specified as 5 µs.
