BSP 372 is an N-channel enhancement mode logic level avalanche rated small signal transistor. It features a maximum drain-source breakdown voltage of 100V, a maximum continuous drain current of 1.7A and a 0.31 ohm on-state drain-source resistance.

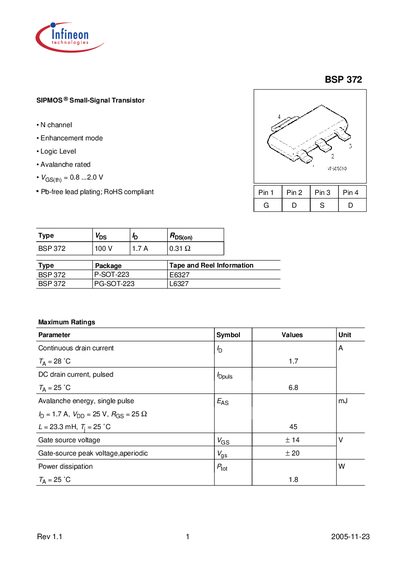

The BSP 372 is an N‑channel, enhancement‑mode, logic‑level small‑signal MOSFET offered by Infineon. The datasheet lists its package options, maximum ratings, and detailed electrical parameters for designers.
Key specifications include a 100 V drain‑source breakdown voltage, 1 A continuous drain current at 25 °C, typical on‑resistance of 0.31 Ω, gate‑threshold voltage ranging from 0.8 V to 2 V, power dissipation of 18 W, and an avalanche energy rating of 50 mJ. Thermal resistance and safe‑operating‑area curves are also provided.
| Drain‑Source Breakdown Voltage (Vds) | 100 V |
|---|---|
| Continuous Drain Current (Id) | 1 A |
The BSP 372 can handle a continuous drain current of 1 A at 25 °C.
